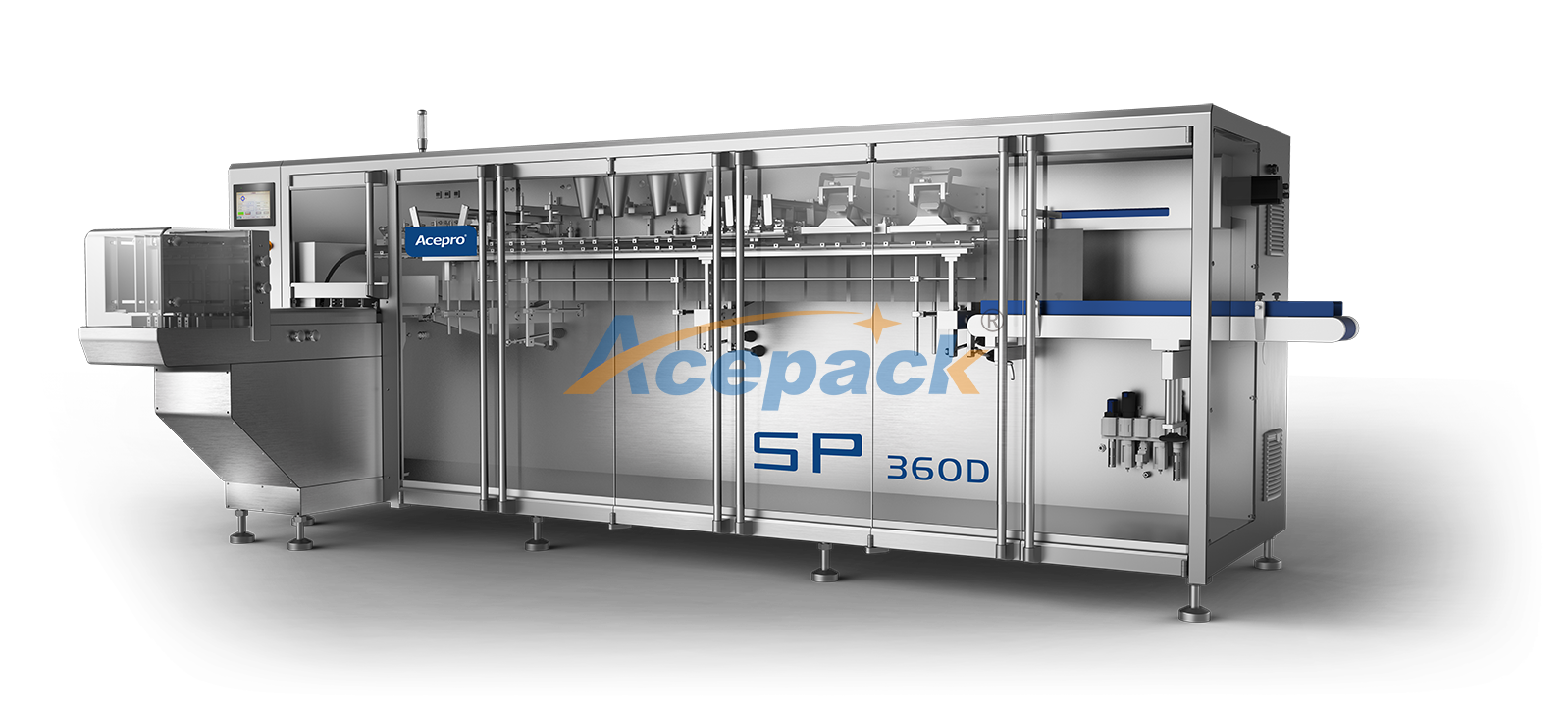

上海歐朔生產的全伺服水平式包裝機，伺服供袋裝置，運行平穩，控制精度高；全伺服結構，更加簡單穩定、噪音更小;設備可實現生命周期管理;設備采用全新控制系統，提升OEE設備綜合效率;具備運轉機構監視功能，更加具備安全性;設備更加智能，降低對操作人員的要求。
全伺服水平式包裝機的特點及參數
EQUIPMENT FEATURE AND PARAMETER:
1.伺服供袋裝置，運行平穩，控制精度高;
Servo bag feeding device, stable operation, high control precision
2.全伺服結構，更加簡單穩定、噪音更小;
Fully servo structure, simpler and more stable, less noise
3.設備可實現生命周期管理;
Devices enable lifecycle management
4.設備采用全新控制系統，提升OEE設備綜合效率;
Adopts a Fuly new control system to improve the comprehensive rate of OEE equipment
5.具備運轉機構監視功能，更加具備安全性;
Equipped with running mechanism monitoring function, adding better security
6.設備更加智能，降低對操作人員的要求;
The equipment is more intelligent which reduces the requirements for operators
| 型號 Model | SP-240 | SP-360D | SP-480Q | SP-480D | ||||||
| 袋形尺寸范圍 Pouch Size |
90*110(Min) 240*350(Max) |
90*110(Min) 180*310(Max) |
60*80(Min) 120*225(Max) |
240*110(Min) 240*350(Max) |
||||||
| 包裝容量范圍 Filling Capacity | 2500ml | 1200ml | 180ml | 2500ml | ||||||
| 包裝速度 Packaging Capacity | 50-70ppm | 100-140ppm | 200-260ppm | 100-130ppm | ||||||
| 能 耗Energy Consumption | 11.5kw/h | 8.5kw/h | 9kw/h | 9kw/h | ||||||
| 耗氣量 Air Consumption | 180NL/min | 200NL/min | 220NL/min | 200NL/min | ||||||
| 設 備尺寸 Machine Dimensions |
3800*2350*1700 (L*W*H) |
5050*2450*1700 (L*W*H) |
6500*1240*1500 (L*W*H) |
5900*1240*1500 (L*W*H) |
||||||
| 重 量 Weight |
|
4500kg |
|
|
